Bulkhead Elbow Tube Fittings Supplier, Bulkhead Elbow Compression Tube Fittings Exporter, Bulkhead Elbow Instrumentation Pipe Fittings Stockists in Mumbai, India
Stainless Steel Bulkhead Elbow Tube Fittings, Alloy Steel Bulkhead Elbow Tube Fittings, Carbon Steel Bulkhead Elbow Tube Fittings, Nickel Alloy Bulkhead Elbow Pipe Fittings Trader

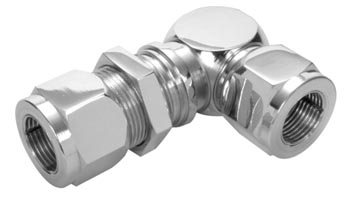

Here at Numax Steels, we source, stock and supply a wide range of Bulkhead Elbows on our same day dispatch service throughout India and worldwide. Precisely engineered these products are extensively used for connecting one tube with other.
Salient Features:
- Maintenance free
- Accurate dimension
- Durable finish
Our offered range of Bulkhead Elbow Tube Fittings is available in Brass, Stainless Steel, Alloy Steel, Carbon Steel, Nickel Alloy, Monel, Hastelloy, Inconel, Alloy 20, and many other materials. If you looking for a right supplier, then you come to the right place. We supply all pipe fittings products with accurate dimensions and sizes. Please call us for a free quote.
Monel Bulkhead Elbow Ferrule Fittings, Hastelloy Bulkhead Elbow Tube Fittings, Inconel Bulkhead Elbow Tube Fittings, Aluminum Bulkhead Elbow Ferrule Fittings Dealer in India

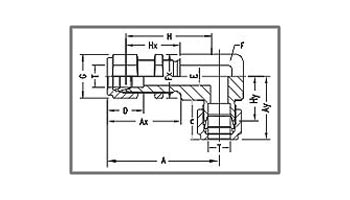

| T Tube OD | A | Ax | Ay | C | D | E min. | F A/F | G A/F | H | Hx | Hy | Panel Hole Drill Size | Max Panel Thickness |
| 1/8 | 43.1 | 31.2 | 22.4 | 15.3 | 12.7 | 2.4 | 11 | 11 | 36.5 | 24.6 | 15.8 | 8.3 | 12.7 |
| 1/4 | 48.9 | 33.6 | 26.9 | 17.8 | 15.3 | 4.8 | 16 | 14 | 41.5 | 26.2 | 19.6 | 11.5 | 10.1 |
| 3/8 | 54.1 | 36.8 | 30.5 | 19.3 | 16.8 | 7.1 | 22 | 17 | 46.8 | 29.5 | 23.2 | 14.6 | 11.1 |
| 1/2 | 63.5 | 41.9 | 36.0 | 21.8 | 22.9 | 10.4 | 24 | 22 | 53.4 | 31.8 | 25.9 | 19.5 | 12.7 |
| 3/4 | 75.3 | 47.5 | 39.9 | 21.8 | 24.4 | 16.0 | 30 | 29 | 65.2 | 37.4 | 29.7 | 25.8 | 16.8 |
| 1 | 91.8 | 57.4 | 49.0 | 26.4 | 31.2 | 22.3 | 35 | 38 | 79.6 | 45.2 | 36.8 | 33.7 | 19.0 |
| T Tube OD | A | Ax | Ay | C | D | E min. | F A/F | G A/F | H | Hx | Hy | Panel Hole Drill Size | Max Panel Thickness |
| 3 | 43.0 | 31.2 | 22.3 | 15.3 | 12.9 | 2.4 | 14 | 11 | 36.4 | 24.6 | 15.7 | 8.3 | 12.7 |
| 6 | 49.3 | 33.6 | 27.0 | 17.7 | 15.3 | 4.8 | 16 | 14 | 41.9 | 26.2 | 19.6 | 11.5 | 10.2 |
| 8 | 52.6 | 36.1 | 28.8 | 18.6 | 16.2 | 6.3 | 17 | 16 | 45.1 | 28.6 | 21.3 | 13.1 | 11.2 |
| 10 | 56.2 | 37.0 | 31.5 | 19.5 | 17.2 | 7.9 | 22 | 19 | 48.6 | 29.4 | 23.9 | 16.3 | 11.2 |
| 12 | 63.0 | 41.9 | 36.0 | 22.0 | 22.8 | 9.5 | 24 | 22 | 52.9 | 31.8 | 25.9 | 19.5 | 12.7 |
| 16 | 66.5 | 42.6 | 38.0 | 22.0 | 24.4 | 12.7 | 27 | 25 | 56.4 | 32.5 | 27.9 | 22.8 | 12.7 |
| 22 | 85.1 | 53.0 | 41.9 | 22.0 | 26.0 | 18.3 | 35 | 32 | 75.0 | 42.9 | 34.5 | 29.0 | 19.0 |
| 25 | 91.8 | 57.4 | 49.1 | 26.4 | 31.2 | 22.3 | 35 | 38 | 79.6 | 45.2 | 36.8 | 33.7 | 19.0 |
Price List of Bulkhead Elbow
Numax Steels is one of the most competitive suppliers of pipes and tubes from India. Our prices for Bulkhead Elbow are very competitive. Please click on the enquiry button or click here to request the updated price list and ready stock information along with your requirement. Numax Steels maintains a stock of all standard items and can export them at the best price for Bulkhead Elbow.
